Drum vs Toner: What is a Printer Drum? Learn All About It

Hi there! We are here again with another informative and interesting topic. Therefore, sit back and read the topic until the end to add value to your brain.

Speaking about printers, there are a lot of complexities and components installed in them. They are not easy machines to build and operate. Just a small part of this bunch of components is the drum. Printer operators generally get confused and consider it as toner cartridges. What is a printer drum? And how are they different from toner cartridges?

It is a crucial element of the machine responsible for transferring images to your pages. But how do they work and what are their complexities? We will try to explain all those things through the following list of topics.

What is a Printer Drum?

A printer drum, often referred to as a photoreceptor or image drum, is an important component found in laser printers and photocopiers. It is essential in the printing process because it captures and transfers toner onto the paper to form the final printed image.

Typically, the printer drum unit is a cylindrical or cylinder-shaped component covered with a photosensitive substance. At the start of the printing cycle, it is negatively charged. A laser or other light source projects an image of the content to be printed onto its surface as it revolves. According to the photograph, the light causes regions to get electrically discharged.

As you might have known, these drums are generally installed in laser printers; here are some more facts related to them:

• Lifespan: Depending on the printer model and usage, their lifespan might vary. It may typically last between 10,000 and 50,000 pages before needing to be changed. Although you can check the remaining lifespan of the printer drum by following various guides on the internet.
• Replacement frequency: The frequency of replacements is determined by parameters such as print volume and condition. Higher print volumes may necessitate more frequent replacements, although high-quality drums tend to last longer.
• Cost: Printer drum replacement costs vary based on the printer brand and model. These are generally more expensive than toner cartridges due to their complexity. Prices might range from $50 to $300 or more.
• Compatibility: These components are manufactured to be compatible with certain printer models. To obtain the best performance, make sure the new unit is compatible with your printer.
• Maintenance: They require regular maintenance to extend their life and provide high print quality. This may involve cleaning the surface, preventing excessive heat and light exposure, and following manufacturer-recommended maintenance practices.

It is a cylinder that is generally teal, green, or maroon in color and is located quite near your toner cartridge. Its function is to transmit the picture from the toner to the paper. We hope that now you are aware of what is a drum in a printer.

However, technologies have gone too far and advanced with things like duplex printing. However drum printers still play their primary role in their functioning. Various models and variations of printers have been introduced in the market. But this component has always made its place in them.

Drum vs Toner

The drum unit and toner are two distinct components in a laser printer or photocopier. Here’s the difference between them:

Printer Drum Unit	Toner
A critical component of the printing process is the printer drum unit, often known as the imaging or photoreceptor.	Toner is a powdery mixture of colors, plastic particles, and other components.
It is in charge of capturing and transferring toner onto paper to produce the final printed picture.	It is the “ink” that laser printers and photocopiers utilise to make the picture on paper.
It is made up of a cylindrical-shaped component that has been coated with a photosensitive substance.	Toner particles are drawn to the charged portions of the drum, forming the latent image, which is transferred to the paper during the printing process.
It becomes negatively charged when exposed to the printed image, causing portions to get electrically discharged.	To form a lasting picture, the toner is fused into the paper with heat.
To generate a latent picture, the toner particles are drawn to the charged portions.	Toner cartridges contain toner powder and are intended to be replaced in a printer or copier.
The unit must be serviced on a regular basis and may need to be replaced after a particular number of print cycles or when its performance deteriorates.	When toner cartridges run out or print quality begins to deteriorate, they may need to be changed.

In summary, it captures and transfers toner onto the paper, whereas toner is the powdered material that makes the picture on the paper. In the printing process, both components operate together, with the unit managing image generation and the toner providing the real ink-like material for printing.

Are Printer Drum Units Replaceable? How to Know When to Replace Them?

Yes, it can easily be replaced. But when to replace them? Follow the signs given below and learn what the signs will tell you to change the unit.

• Poor print quality: Observe a drop in print quality, such as streaks, smudges, or fading prints that continue even after cleaning the printer, this might indicate that it is worn out or broken.
• Toner not sticking correctly: The moment you notice that the toner is not adhering well to the paper or that there is an uneven distribution of toner on the prints, this might suggest a problem with the unit.
• Repetitive faults: If you see repeated patterns or defects in your prints, such as when your printer is printing lines, spots, or blots in the same places, it might be a symptom of damage or wear on the surface.
• Error messages or warning lights: Some printers have sensors or indicators that monitor the state. If you read error messages or observe warning lights that are particular, it is time to replace them.
• Hide page count: They have a limited lifespan when considered in terms of page count. If you’ve reached or beyond the manufacturer’s suggested page count for the drum unit, it’s probably time to replace it.
• Maintenance intervals: Maintenance intervals for their replacement have been advised by certain printers. Check the printer’s paperwork or the manufacturer’s instructions to see if a replacement is needed based on the suggested maintenance plan.
• Manufacturer recommendations: The manufacturer may provide specific guidelines on when and how to replace the drum cartridge. Check their recommendations to ensure optimal performance and print quality.

Well, if you are getting these signs, just get the point that now you have to replace it. Don’t know how to do that? Worry not, we’re here for you.

How to Change Printer Drum Unit?

To easily replace the faulty unit, follow the steps given below:

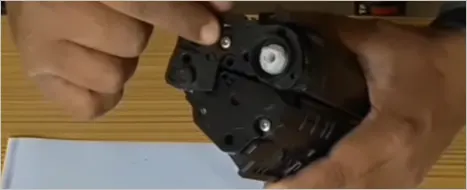

1. From the correct side of the cartridge, unscrew the screws from the cap.

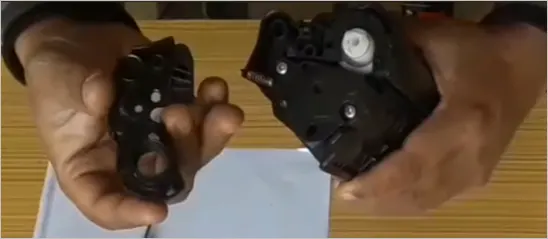

2. Take the cap off.



3. Carefully apart both sides of your cartridge unit.



Note: Mind that they both are locked together, therefore, carefully part them away from each other.

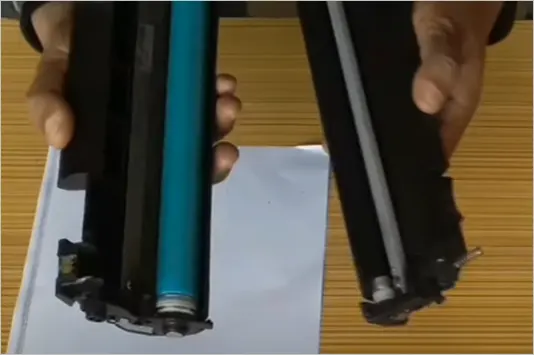

Lift the drum from one side to take it out.

Now unpack your brand-new unit and install it the same way.

After installing the new unit, join both sides of the cartridge that were taken apart. Make sure to align both locks with each other.

Note: Prior to installing a new unit, make sure that you clean all the components and areas where you can see waste ink sticking to them. Unless you will not get high-quality prints even after changing the printer drum unit.

Put the cap back and screw the nuts back to it.

These were simple baby steps by which you can easily replace your printer drum unit. Throughout the process, make sure not to crack any component of the cartridge; otherwise, it can fall heavy on your pocket. And also ensure to clean all the components and parts of the cartridge.

Also Read: Do-It-Yourself Ink Cartridge Refill— Should You Really Refill Ink Cartridges On Your Own?

Wrapping Up

Finally, understanding the function and upkeep of components is critical for effective printing performance. To create the final printed picture of the question of what is a printer drum, also known as the imaging or photoreceptor, captures and transfers toner onto the paper. Poor print quality, toner adhesion issues, recurring flaws, error messages or warning lights, meeting the recommended page count, and following manufacturer guidelines are all indicators that it needs to be replaced.

Furthermore, proper maintenance practices such as cleaning the surface, preventing excessive heat and light exposure, and handling the unit with care can all help extend its lifespan. Toner cartridges, which contain the toner utilized in the printing process, must be replaced on a regular basis to ensure optimal print quality.

We are sure you now know how to change the drum in a printer with a few easy steps.
